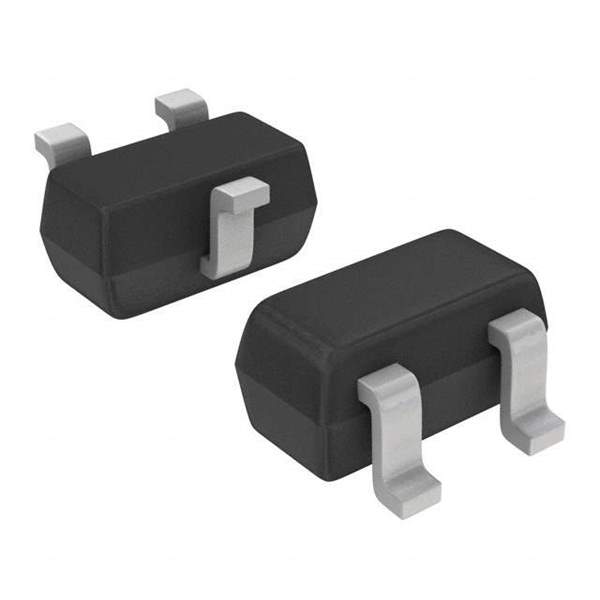

ON Semiconductor BAT54CTT1G Schottky Diode

The ON Semiconductor BAT54CTT1G is a highly efficient, surface-mount Schottky barrier diode designed for applications requiring fast switching and low power loss. This diode is housed in a compact SOT-23 package, making it an ideal choice for space-constrained applications. The BAT54CTT1G offers excellent performance with a forward current of 200 mA and a low forward voltage drop, ensuring reduced power dissipation and improved system efficiency.

This Schottky diode features a series configuration of two diodes, which can be used in a variety of rectification and switching circuits. The BAT54CTT1G is characterized by its fast reverse recovery time, which makes it suitable for high-frequency operations. The device is also known for its low leakage current, which minimizes power loss when the diode is in the off state.

Key Features:

• Forward Current (I_F): 200 mA
• Low Forward Voltage Drop
• Fast Switching Speed
• Low Leakage Current
• Operating Junction Temperature Range: -55°C to +125°C
• Compact SOT-23 Package
• Lead-Free, RoHS Compliant

The BAT54CTT1G is designed to meet the stringent requirements of a wide range of electronic devices. It is commonly used in portable devices, power management circuits, and high-frequency rectifiers. Its low forward voltage drop and fast switching capabilities make it particularly suitable for DC-DC converters, voltage clamping applications, and protection circuits.

ON Semiconductor's commitment to quality ensures that the BAT54CTT1G diode provides reliable and consistent performance. Whether it's for mobile devices, computing systems, or industrial equipment, this Schottky diode is an excellent choice for designers looking to enhance their circuit efficiency and longevity. The BAT54CTT1G is a testament to ON Semiconductor's dedication to providing advanced semiconductor solutions that meet the evolving needs of the electronics industry.
