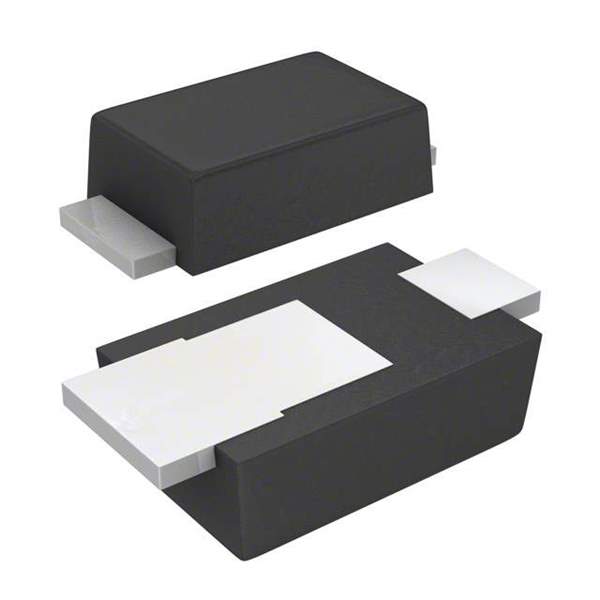

The AL5809-20P1-7, manufactured by Diodes Incorporated, is a simple, flexible, and robust power LED driver designed to deliver constant current to high-brightness LEDs. The device's strength lies in its straightforward two-pin linear setup, which simplifies the design and reduces component count for lighting applications.

Key Features

• Constant Current Output: The AL5809-20P1-7 provides a stable constant current output, which is essential for maintaining consistent brightness and color in LED lighting applications. This feature enhances the longevity and reliability of the LEDs.
• Wide Input Voltage Range: It operates over a broad input voltage range, making it versatile for various applications and ensuring compatibility with different power supplies.
• High Power Capability: This LED driver can handle up to 20mA of output current, suitable for driving multiple LEDs in series.
• Thermal Protection: The device includes built-in thermal shutdown protection, which safeguards the LEDs and the driver from potential overheating and thermal damage.
• Small Package Size: The AL5809-20P1-7 comes in a compact SOD-123 package, which is advantageous for space-constrained applications.
• High Efficiency: With its simplicity and minimal external components, the driver achieves high efficiency, reducing energy consumption and heat generation.

Applications

The AL5809-20P1-7 is ideal for a wide range of lighting applications, including:

• LED Lamps and Bulbs
• Architectural and Decorative Lighting
• Garden and Outdoor Lighting
• Emergency Lighting
• Signage and Backlighting

Conclusion

In conclusion, the AL5809-20P1-7 from Diodes Incorporated is an efficient and reliable solution for powering LEDs. Its ease of use, combined with its performance features, makes it an excellent choice for designers looking to create long-lasting and energy-efficient LED lighting systems.
