The FT230XQ-R is a compact bridge device that converts USB2.0 Full-Speed to UART (Universal Asynchronous Receiver/Transmitter) from FTDI, Future Technology Devices International Ltd. This integrated circuit is part of FTDI's USB to serial range of chips, designed to deliver fast, efficient serial data transfer while minimizing the board space required.

Key Features

• USB2.0 Full-Speed Compatible: The device operates at USB2.0 Full-Speed, ensuring quick data transfer rates.
• Integrated Clock Circuit: No external crystal is needed as the FT230XQ-R comes with an integrated clock circuit that simplifies design and reduces component count.
• Driver-Free Operation: In many cases, the chip can communicate with the host without the need for additional drivers, thanks to its compatibility with built-in drivers in most operating systems.
• Low Power Consumption: Designed for efficiency, the FT230XQ-R consumes minimal power, making it suitable for portable and battery-powered applications.
• Configurable I/O Pins: The device offers configurable CBUS I/O pins that can be used for additional functionalities such as clock output, TX and RX LEDs, or other custom I/O options.

Applications

The FT230XQ-R is versatile and can be used in various applications, including:

• USB to RS232/RS422 converter
• Upgrade of RS232 legacy devices to USB
• USB instrumentation
• USB industrial control
• USB software/hardware encryption dongles

Package and Quality

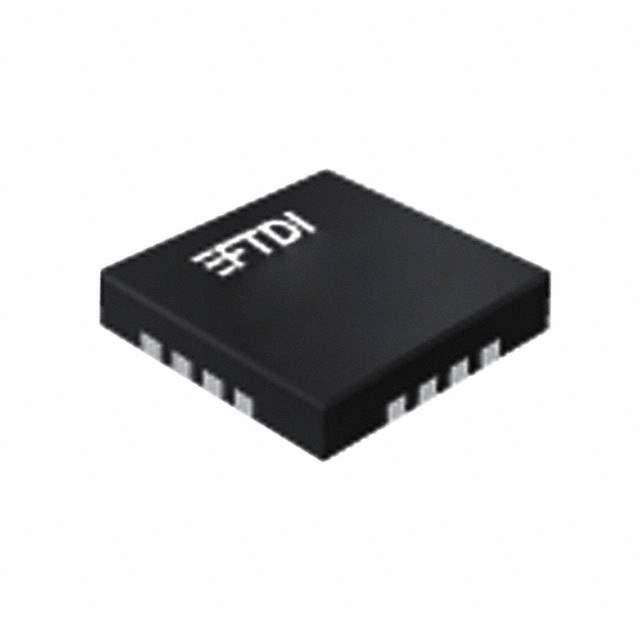

The FT230XQ-R is available in a compact QFN-16 package, offering a small footprint for space-constrained applications. FTDI is known for its commitment to quality, and this product is no exception, ensuring reliability and performance for critical applications.

For detailed technical specifications, application support, and ordering information, please refer to the official FTDI website or contact their sales and support team.
