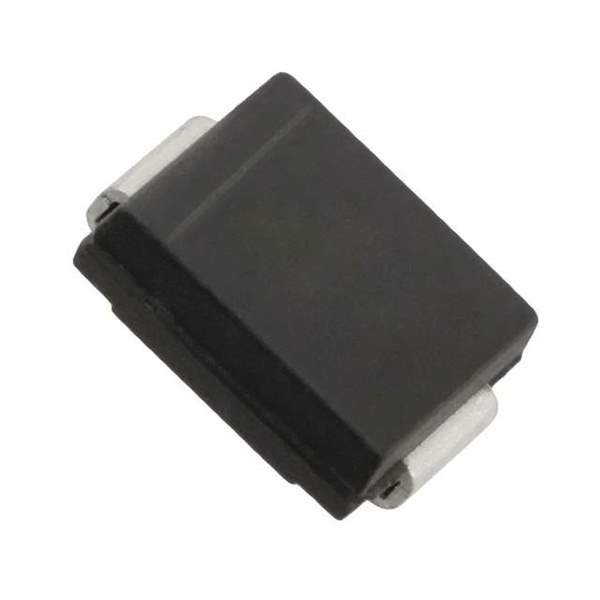

Introducing the B360-13-F Schottky Barrier Rectifier from Diodes Incorporated

The B360-13-F is a high-performance Schottky Barrier Rectifier designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This rectifier is engineered to provide efficient and reliable performance for a diverse range of applications, including power supply, converter, and high-frequency circuits.

Key Features

• High Current Capability: The B360-13-F supports a robust average rectified forward current of 3A, making it suitable for high current applications.
• Low Forward Voltage Drop: With a forward voltage drop as low as 0.71V at 3A, this Schottky rectifier ensures high efficiency, which is critical for energy-sensitive designs.
• High Surge Capability: It is designed to withstand surge currents, ensuring durability and reliability under stressful conditions.
• Lead-Free Finish: The B360-13-F is RoHS compliant with a lead-free finish, making it an environmentally friendly choice for modern electronics.
• Power Package: Packaged in a SMB form factor, the device is compact and suitable for surface-mount technology, providing a space-saving solution on printed circuit boards.

Applications

The versatile nature of the B360-13-F allows it to be used in a variety of applications, including:

• Switching power supplies
• Converters
• Free-wheeling diodes
• Reverse battery protection
• DC-DC converters
• Automotive applications

Technical Specifications

The B360-13-F boasts impressive technical specifications that make it a top choice for engineers and designers:

• Peak Repetitive Reverse Voltage (V_RRM): 60V
• Maximum RMS Voltage (V_RMS): 42V
• Maximum DC Blocking Voltage (V_DC): 60V
• Operating Junction Temperature: -55°C to +150°C

With its combination of high efficiency, robust performance, and compact packaging, the B360-13-F Schottky Barrier Rectifier from Diodes Incorporated is an excellent choice for your power management and rectification needs. Its compliance with environmental standards and adaptability to various electronic circuits makes it a must-have component for cutting-edge electronic designs.
