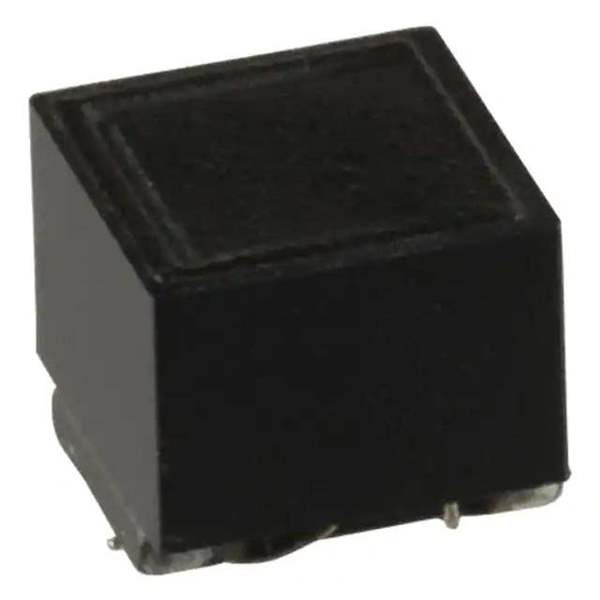

The DLW5BSM191SQ2L is a common mode choke designed for use in filters.

• GPTDescription: It is part of the DLW5B series from Murata Electronics.
• GPTDescription: This choke has a maximum voltage rating of 50V DC and a current rating of 5A.
• GPTDescription: The impedance @ a frequency of 100 MHz is 190 Ohms.
• GPTDescription: The DC resistance is 20mOhm.
• GPTDescription: It is a surface mount component with a package size of 0.197" L x 0.197" W (5.00mm x 5.00mm) and a height of 0.177" (4.50mm).
• GPTDescription: The DLW5BSM191SQ2L is suitable for power and signal line filtering applications.
• GPTDescription: It is available in a tape & reel package with a standard package quantity of 400 pcs.
• GPTDescription: The operating temperature range is -40°C to 85°C.
• GPTDescription: This component is compliant with REACH regulations and has an ECCN of EAR99.
