Product Overview: 74HC4051D,653

The 74HC4051D,653 is a high-performance, single-pole octal-throw analog switch (SP8T) integrated circuit, designed and manufactured by NXP Semiconductors. This versatile chip is part of the 74HC family, which is well-known for its high-speed CMOS technology. It is specifically created to handle multiple analog signals or digital data streams, making it an excellent choice for a variety of multiplexing and demultiplexing applications.

Key Features

• Wide Analog Input Voltage Range: The 74HC4051D,653 operates efficiently with an analog input voltage range from -5V to +5V, providing flexibility in a wide array of applications.
• Low ON Resistance: With a typical ON resistance of 70 Ohms at Vcc - Vee = 4.5V, the switch ensures minimal signal distortion and power loss.
• High Noise Immunity: The inherent design of CMOS technology offers high noise immunity, making the 74HC4051D,653 reliable in electrically noisy environments.
• Low Power Consumption: The device is characterized by low power dissipation, conserving energy in battery-powered devices.
• Versatile Supply Voltage Range: It can be powered by a supply voltage ranging from 2V to 10V, accommodating various logic levels and making it suitable for interfacing with both TTL and CMOS logic families.

Applications

The 74HC4051D,653 is ideal for use in a broad spectrum of applications. It can be implemented in:

• Analog multiplexing and demultiplexing
• Signal gating
• Data routing
• Communication systems
• A/D and D/A conversion
• Audio and video switching

Package Details

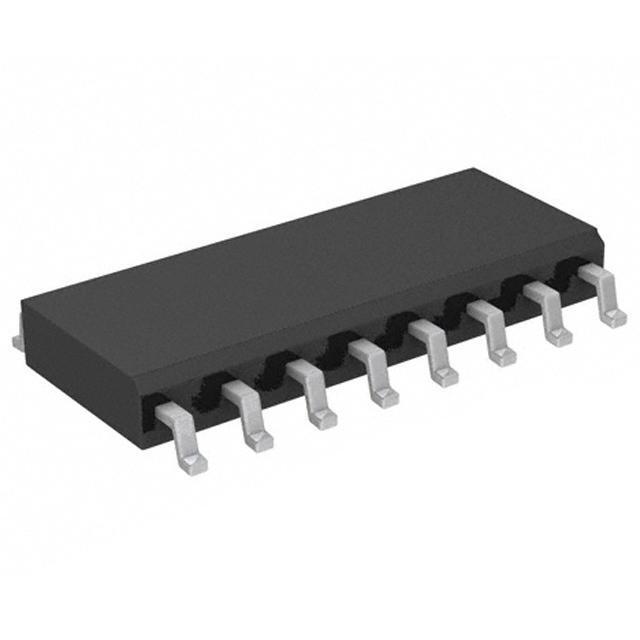

This particular model of the 74HC4051D comes in a SOIC-16 package, which is a small outline integrated circuit package with 16 pins. This compact form factor is suitable for space-constrained applications while still offering ease of soldering and handling.

Quality and Reliability

NXP Semiconductors is committed to delivering high-quality products. The 74HC4051D,653 is produced with stringent quality control processes, ensuring reliable performance and consistency for industrial and commercial use.

In conclusion, the 74HC4051D,653 from NXP is a highly adaptable and efficient solution for managing multiple signal paths within electronic systems. Its robust design and low power consumption make it a go-to component for engineers and designers working on sophisticated electronic designs.
