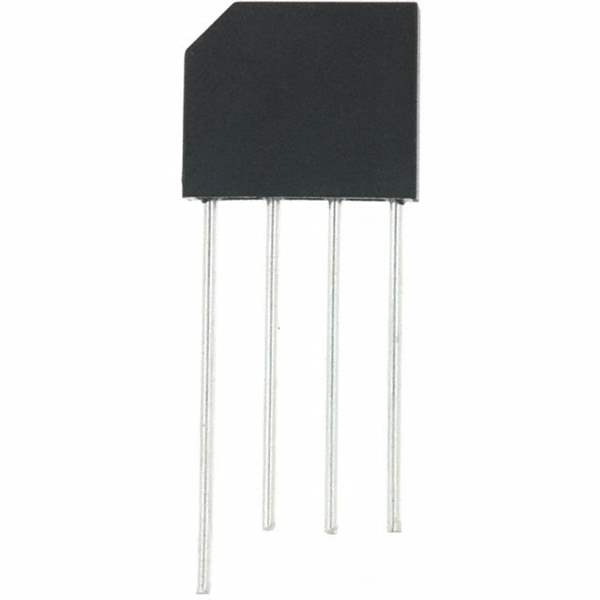

Introducing the KBL06 Bridge Rectifier from ON Semiconductor

The KBL06 is a single-phase bridge rectifier from ON Semiconductor, renowned for its high efficiency and reliability in converting alternating current (AC) to direct current (DC). This component is designed to meet the needs of a wide array of electronic applications, making it a versatile choice for designers and engineers.

Constructed with a glass passivated chip, the KBL06 offers enhanced performance and longevity. This bridge rectifier is capable of withstanding a repetitive peak reverse voltage (VRRM) of up to 600V, which makes it suitable for moderate voltage applications. Its forward current is rated at 4A, ensuring that it can handle a reasonable amount of power conversion without overheating or failing.

The KBL06 features a surge overload rating of 125A peak, providing ample protection against sudden surges in current, which is crucial for maintaining the stability and safety of the electrical system it is integrated into. Its low forward voltage drop contributes to its efficiency, ensuring minimal energy is wasted in the form of heat during the rectification process.

This bridge rectifier comes in a KBL package, which is known for its compact size and ease of mounting on printed circuit boards (PCBs). With its through-hole mounting design, the KBL06 can be easily installed in a variety of electronic devices, from power supplies to lighting systems, and from battery chargers to home appliances.

The KBL06 is also characterized by its high case dielectric strength of 1500V RMS, which provides an additional layer of insulation and protection against electrical shocks and system breakdowns. This feature ensures that the device can operate safely even in environments where electrical interference or fluctuations are common.

ON Semiconductor's commitment to environmental sustainability is reflected in the KBL06's compliance with RoHS directives, making it free from hazardous substances like lead and mercury. This commitment ensures that the product is not only safe for consumers but also has a reduced environmental impact.

In summary, the KBL06 bridge rectifier from ON Semiconductor is a reliable, efficient, and environmentally friendly solution for AC to DC conversion in a wide range of electronic applications. Its robust construction, high voltage and current capabilities, and surge protection make it an excellent choice for engineers looking for a dependable rectification component.
