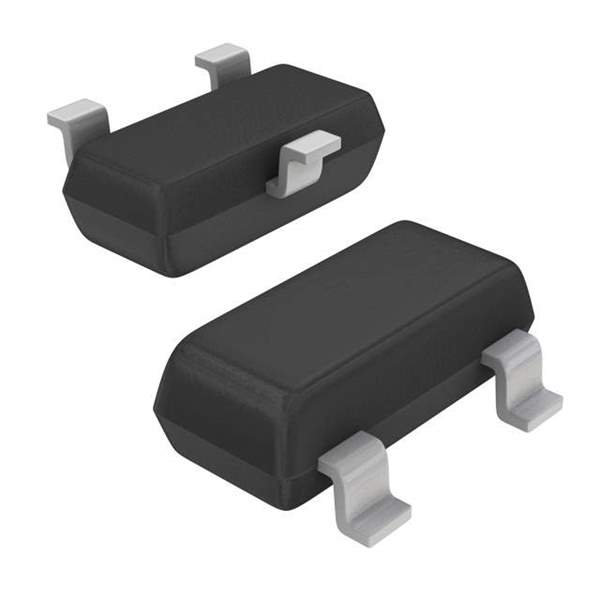

The ON Semiconductor MDC3105LT1G is a high-performance, dual N-channel MOSFET designed for a variety of applications that require efficient power management and high switching speeds. This product is a testament to ON Semiconductor's commitment to providing energy-efficient solutions to the electronics industry.

Key Features

• Device Type: Dual N-Channel MOSFET
• Configuration: Dual Common Drain
• Package: SOT-23-6, providing a compact footprint
• Drain-Source Voltage (Vdss): 20 V
• Continuous Drain Current (Id): 630 mA
• Power Dissipation (Pd): 225 mW
• RDS(on): Very low on-resistance for improved efficiency
• Gate Threshold Voltage (Vgs th): Minimum of 0.5 V
• Fast Switching Speed: Suitable for high-frequency applications
• RoHS Compliant: Meets environmental standards

Applications

The MDC3105LT1G MOSFET is versatile and can be utilized in various applications, including:

• Power Management Circuits
• DC/DC Converters
• Battery Powered Systems
• Motor Control Systems
• Load/Power Switching
• Portable Electronic Devices

Quality and Performance

ON Semiconductor's MDC3105LT1G is built with the quality and performance that engineers expect. The device offers a balance between size and efficiency, making it an ideal choice for portable and space-constrained applications. Its low on-resistance ensures minimal power loss during operation, which is critical for battery-operated devices where energy conservation is paramount.

Furthermore, the fast switching capabilities of the MDC3105LT1G make it suitable for applications that require quick response times, such as motor controls and power regulators. The dual common drain configuration facilitates simplified PCB layout and design, allowing for more streamlined and cost-effective manufacturing.

As an environmentally conscious company, ON Semiconductor ensures that the MDC3105LT1G complies with RoHS directives, minimizing the use of hazardous substances in electronic components. This commitment not only helps protect the environment but also enables the use of this MOSFET in products sold worldwide, where environmental regulations are increasingly stringent.

In summary, the MDC3105LT1G from ON Semiconductor is a robust and reliable component that offers excellent performance for a wide range of electronic applications.
