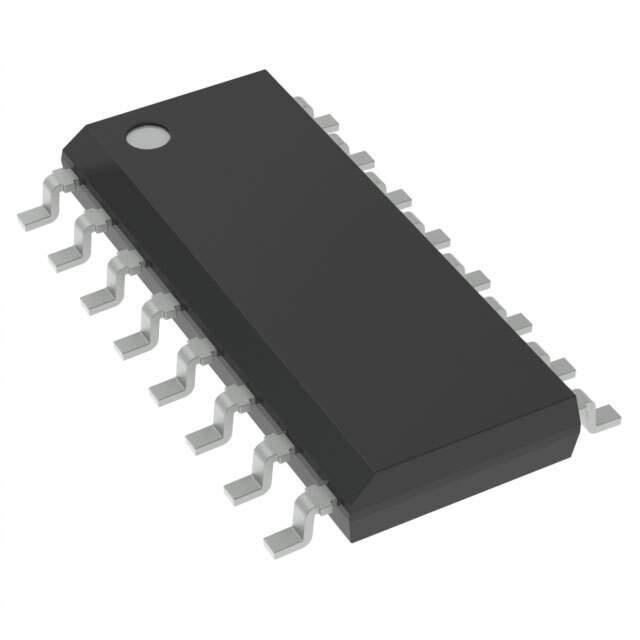

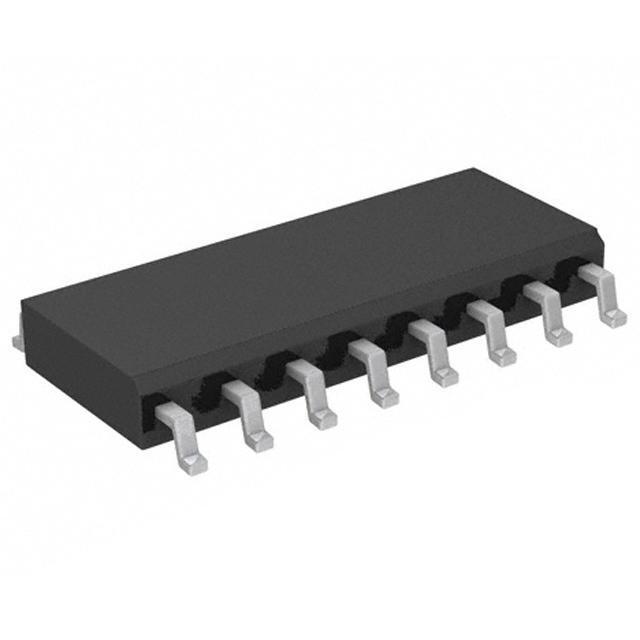

ST3232CDR Low Power 2 Driver/2 Receiver Transceiver from STMicroelectronics

The ST3232CDR is a robust and versatile transceiver module from STMicroelectronics, designed to facilitate serial communication in low-power and portable applications. This integrated circuit is particularly well-suited for battery-powered devices, thanks to its low-power consumption and wide supply voltage range. It ensures reliable data transmission and reception over RS-232 communication protocols, making it an ideal choice for a variety of industrial, consumer, and telecommunications systems.

Key Features:

• Low Power Consumption: The ST3232CDR is engineered for power-sensitive applications, with a typical operating current of just 300 µA and a low-power shutdown mode that reduces the current draw to a mere 1 nA, ensuring extended battery life in portable devices.
• Wide Voltage Range: It operates across a broad supply voltage range from 3.0V to 5.5V, providing design flexibility and compatibility with both 3.3V and 5V systems.
• High Data Rate: Capable of supporting data rates up to 400 kbps, this transceiver can handle high-speed data communication with ease.
• ESD Protection: The device features robust electrostatic discharge (ESD) protection up to ±15 kV, safeguarding the transceiver against static electricity and other transient voltage spikes.
• Dual Driver/Receiver Configuration: With 2 drivers and 2 receivers, the ST3232CDR can manage full-duplex data transmission, allowing simultaneous sending and receiving of data streams.

Applications:

The ST3232CDR is highly versatile and can be used in a wide array of applications, including:

• Portable or battery-powered electronics
• Notebooks, laptops, and PDAs
• Serial data communication and RS-232 interface
• Industrial control systems
• Point of sale (POS) equipment

With its combination of low power consumption, high data rate capability, and robust protection features, the ST3232CDR from STMicroelectronics is an excellent choice for designers looking to implement reliable RS-232 communications in their products.
