The TLC2252CDR from Texas Instruments is a high-performance, dual operational amplifier that has been engineered to deliver a blend of power efficiency and accuracy, making it an ideal choice for a wide array of applications. This op-amp is part of the LinCMOS™ family and is particularly suited for single-supply operations.

Key Features:

• Low Power Consumption: The device offers a low supply current, which is typically 210 µA per channel. This feature makes it suitable for battery-powered and portable applications where power efficiency is critical.
• Wide Supply Range: With an operational voltage range from 2.7V to 16V, the TLC2252CDR can be used in various systems without the need for level shifting, simplifying design and reducing component count.
• Rail-to-Rail Output Swing: The output can swing within millivolts of the supply rails, maximizing the dynamic range in low-voltage applications.
• High Input Impedance: The TLC2252CDR boasts a high input impedance, minimizing the loading effect on the input signal source and ensuring signal integrity.
• Low Offset Voltage: The device features a low input offset voltage, which enhances measurement accuracy and stability over time and temperature variations.
• Micro-Power Shutdown Mode: An optional feature that allows further reduction of the supply current to 0.5 µA per channel for power-critical applications.

Applications:

The operational amplifier can be utilized in a plethora of applications, including:

• Portable and battery-operated electronics
• Active filters
• Sensor signal conditioning
• Data acquisition systems
• Medical instrumentation
• Audio processing

Product Packaging:

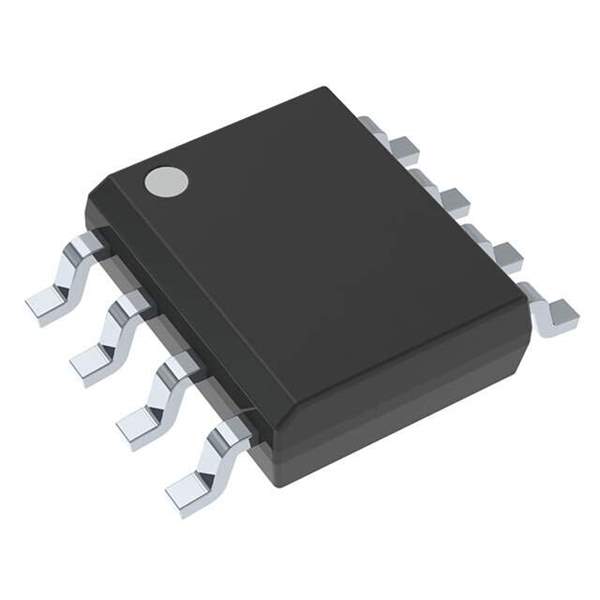

The TLC2252CDR comes in an 8-pin SOIC package, which is a compact form factor suitable for space-constrained applications. The device is provided on tape and reel, facilitating automated assembly processes and volume production.

Quality and Reliability:

As with all Texas Instruments products, the TLC2252CDR is manufactured to high standards, ensuring reliability and performance consistency. It is designed to meet or exceed the requirements of the most demanding applications.
