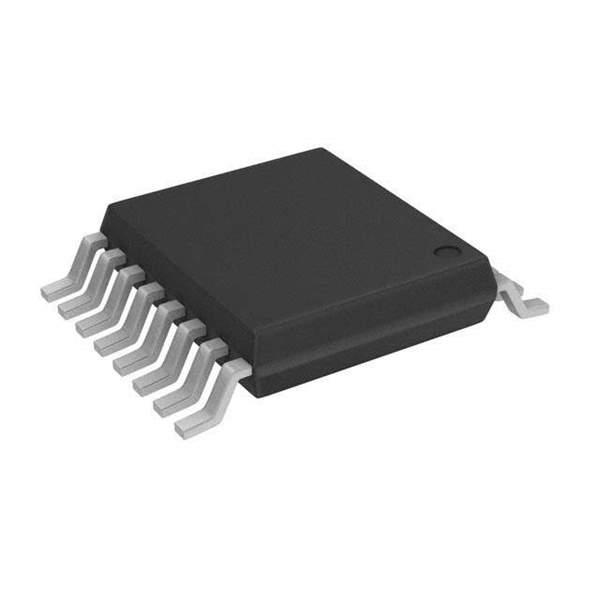

The Toshiba TC78H611FNG(OEL) is a three-phase brushless DC (BLDC) motor driver. It is designed for a wide range of applications, offering high efficiency and precise motor control. This driver integrates various protection features, ensuring robust and reliable operation.

Applications:

• Fan motors
• Pumps
• Robotics
• Power tools
• Home appliances

Features:

• Three-phase full-wave drive
• Sensorless operation
• PWM speed control
• Overcurrent protection
• Overvoltage protection
• Undervoltage lockout (UVLO)

Benefits:

• High efficiency reduces power consumption.
• Precise motor control enables smooth and quiet operation.
• Integrated protection features enhance system reliability.
• Sensorless operation simplifies design and reduces cost.
• Compact package saves board space.

Additional Details:

The TC78H611FNG(OEL) operates with a supply voltage range of 4.5V to 18V (Verify this in the datasheet). It uses a PWM control signal to adjust the motor speed. The sensorless operation eliminates the need for Hall sensors, simplifying the design and reducing the overall system cost. The integrated protection features safeguard the driver and the motor from damage due to overcurrent, overvoltage, or undervoltage conditions. The driver is available in a small surface-mount package, making it suitable for space-constrained applications. It is a versatile solution for driving three-phase BLDC motors in a variety of applications.
