Maxim Integrated MAX44248ASA+T Operational Amplifier

The Maxim Integrated MAX44248ASA+T is a high-performance, precision operational amplifier that offers a unique blend of features making it suitable for a wide range of applications. This op-amp is designed to deliver low noise, low input bias current, and low offset voltage, which makes it an excellent choice for sensor interfaces, medical equipment, and industrial process controls where accuracy and stability are critical.

With its advanced design, the MAX44248ASA+T provides a rail-to-rail output swing, which ensures maximum dynamic range especially when operating from low supply voltages. This feature is particularly beneficial in single-supply operations, as it allows the amplifier to handle signals that range from the ground to the positive supply rail, maximizing the effective range of the analog signal processing.

The device operates from a single 2.7V to 36V supply or from dual supplies of ±1.35V to ±18V, giving designers the flexibility to use it in various configurations and with different power sources. Additionally, the MAX44248ASA+T boasts a wide bandwidth of 10MHz and a fast slew rate of 10V/µs, which enables it to handle high-speed signals without significant distortion, making it ideal for high-performance data acquisition systems.

Another significant advantage of the MAX44248ASA+T is its low input offset voltage of just 45µV (max) and low input bias current of 1pA (max), which ensures accurate signal amplification without introducing significant errors. This precision is maintained over temperature with a temperature coefficient of only 0.1µV/°C, ensuring reliable performance even under varying environmental conditions.

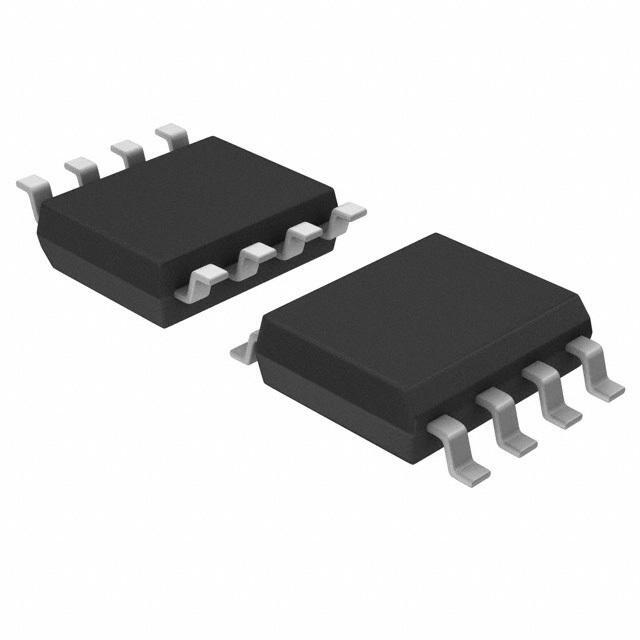

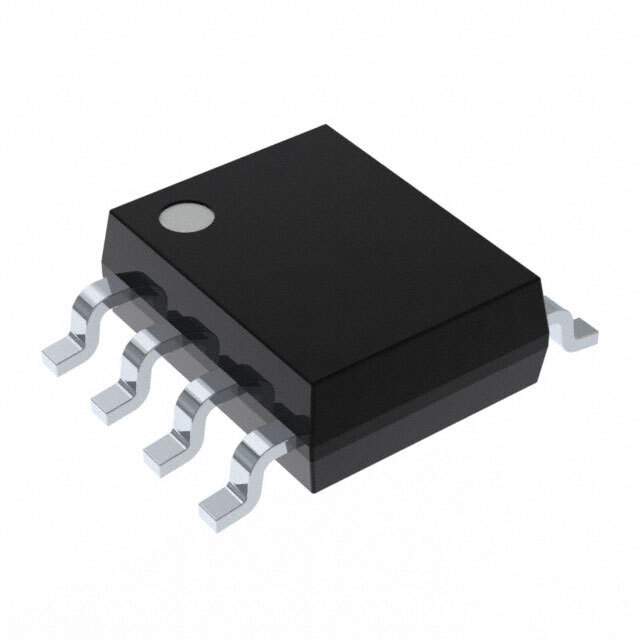

The device is offered in an 8-pin SOIC package and is specified over the extended -40°C to +125°C operating temperature range. The MAX44248ASA+T also features integrated EMI filtering inputs, which reduce the effects of radio frequency interference, thus preserving signal fidelity in noisy environments.

In summary, the MAX44248ASA+T from Maxim Integrated is a versatile and reliable operational amplifier that provides the precision, low noise, and high-speed performance required for demanding analog applications. Its robust feature set and operational flexibility make it a top choice for engineers and designers looking for a high-quality op-amp solution.
