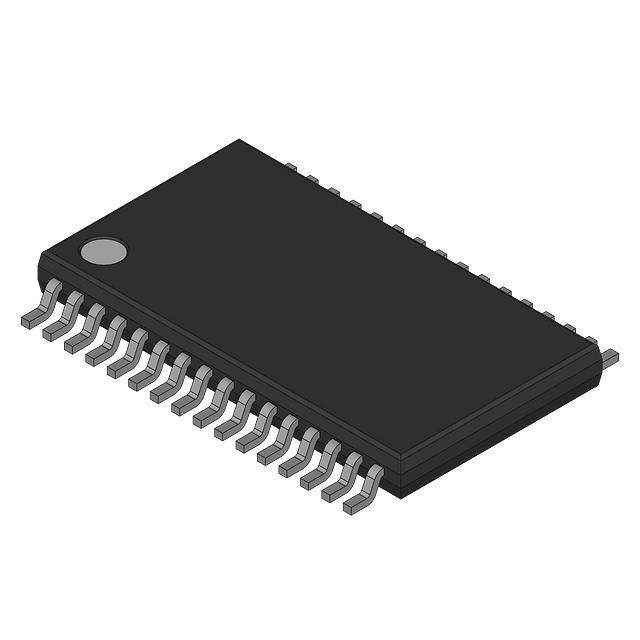

Product Overview: MC33879APEKR2

The MC33879APEKR2 is a sophisticated integrated circuit from NXP Semiconductors, designed for the automotive industry and other high-reliability applications. It is part of NXP's family of System Basis Chips (SBCs) that provide multiple functions in a single package, aimed at reducing the complexity and improving the robustness of automotive control units.

Key Features

• Octal Serial Switch: The device features eight output drivers that can be controlled through a Serial Peripheral Interface (SPI). This allows for the efficient management and control of various loads within the vehicle.
• Enhanced Diagnostics: The MC33879APEKR2 incorporates advanced diagnostic features to detect open load, short circuits, and over-temperature conditions, ensuring high reliability and safety.
• Low R_DS(ON): The low on-resistance of the output drivers ensures minimal power dissipation and improved thermal efficiency.
• Versatile Output Configuration: Outputs can be configured as either high-side, low-side, or push-pull drivers, providing flexibility for different load types.
• Programmable Watchdog Timer: A built-in watchdog timer helps to monitor the system for proper operation, enhancing system integrity.

Applications

This chip is particularly well-suited for a variety of automotive applications, such as:

• Body Control Modules (BCM)
• Power Distribution Modules
• LED Lighting Control
• Engine Control Units (ECU)
• Other automotive peripheral control applications

Technical Specifications

The MC33879APEKR2 operates over a wide voltage range and is protected against reverse battery conditions. It is designed to withstand the harsh environments typical in automotive applications, including exposure to high temperatures and vibrations.

Quality and Reliability

NXP is known for its commitment to quality, and the MC33879APEKR2 is no exception. It is manufactured to meet the stringent requirements of the automotive industry, including AEC-Q100 qualification, ensuring long-term reliability and performance.

With its robust design and comprehensive feature set, the MC33879APEKR2 is an excellent choice for designers looking to create reliable and efficient automotive control systems.
