Product Overview: PESD2CAN,215 by NXP Semiconductors

The PESD2CAN,215 is a robust ESD protection device designed by NXP Semiconductors, specifically engineered to safeguard CAN (Controller Area Network) bus lines from electrostatic discharge (ESD) and other transient voltage events. This component is an essential addition for automotive and industrial applications where reliable communication over the CAN bus is critical.

Key Features

• ESD Protection: With its capability to withstand ESD discharges up to 24 kV, the PESD2CAN,215 exceeds the IEC 61000-4-2 level 4 standard, offering superior protection for sensitive electronic circuits.
• Low Capacitance: The device features a very low capacitance, typically around 10 pF, which ensures signal integrity on the CAN bus lines is maintained, allowing for high-speed data transmission without significant signal degradation.
• Low Clamping Voltage: Upon the occurrence of a transient voltage, the PESD2CAN,215 clamps the voltage to a safe level, protecting downstream electronics from potential damage.
• Bidirectional Protection: The bidirectional design of the device provides protection for both lines of the CAN bus, ensuring comprehensive coverage against transient events.
• Automotive and Industrial Grade: Built to meet the stringent requirements of automotive and industrial environments, the PESD2CAN,215 is capable of operating within a temperature range of -55°C to +150°C, making it suitable for harsh conditions.

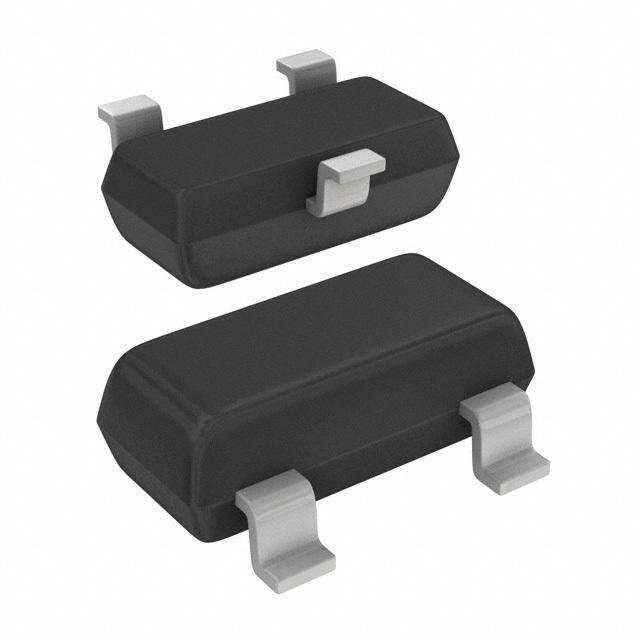

• SOT23 Package: The compact SOT23 package allows for efficient use of PCB space without compromising on the level of protection provided to the CAN bus interface.

Applications

The PESD2CAN,215 is ideal for use in a variety of applications where CAN bus interfaces are employed. This includes automotive electronics such as engine control units, ABS systems, and airbags, as well as industrial automation systems, where reliable communication and protection against ESD are paramount.

Ordering Information

The product is available with the orderable part number PESD2CAN,215. It is provided in a reel, facilitating easy integration into automated manufacturing processes. For detailed product specifications, application notes, and additional resources, please refer to the NXP Semiconductors official website or contact their customer support team.
