Overview

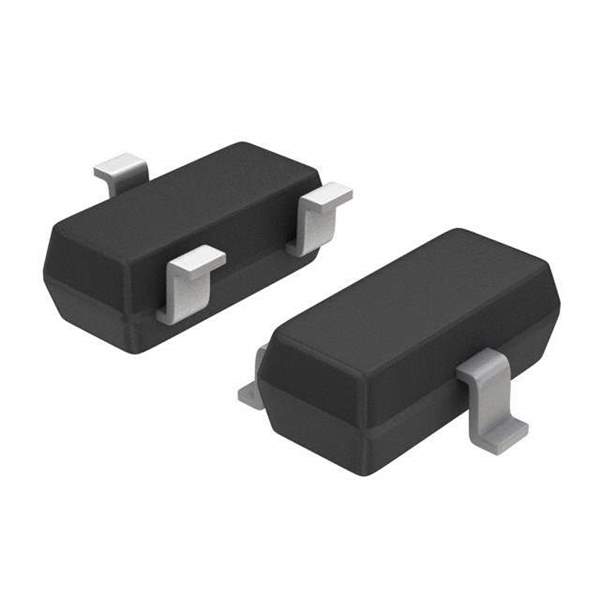

The BC857BLT1G from ON Semiconductor is a single PNP bipolar junction transistor (BJT) designed primarily for low-power, general-purpose switching and small-signal amplification. It is typically supplied in a compact SOT-23 surface-mount package, making it well suited for high-density PCBs and automated assembly. Devices in this BC857 family are commonly used in biasing networks, level shifting, low-current switching stages, and signal conditioning circuits across consumer, industrial, and automotive electronics. Key characteristics include low collector current capability (tens to a few hundred milliamps range), moderate voltage rating typical of small-signal transistors, and adequate gain (hFE) for driver and amplification stages in low- to medium-frequency applications.

Applications

• Low-power signal amplification in audio, sensor, or control circuits
• General-purpose switching of small loads in embedded and IoT devices
• Level shifting, biasing, and reference circuits in mixed-signal designs
• Discrete transistor stages in LED drivers and status indicators
• Input/output interface and buffering in microcontroller-based systems
• General-purpose use in consumer and industrial control boards

Alternatives & Replacement

Depending on stock availability, lifecycle status, or specific electrical and thermal requirements, designers may consider pin-compatible or functionally similar alternatives. Any substitute must be checked carefully against the original design limits for voltage, current, gain, power dissipation, and package constraints.

Recommended alternatives:

• BC807-25LT1G – ON Semiconductor, Functional Equivalent (good general-purpose PNP alternative)
• MMBT4401LT1G – ON Semiconductor, Redesign Required (NPN device; use only with circuit changes)
• MMBT2222ALT1G – ON Semiconductor, Redesign Required (NPN small-signal transistor; different polarity and characteristics)
• BC817-40 – NXP / Nexperia, Redesign Required (NPN transistor with different parameters and package considerations)
• BC846B-7-F – Diodes Incorporated, Redesign Required (general-purpose NPN; board/package review required)
• MMBT4403LT1G – ON Semiconductor, Redesign Required (PNP with different ratings; verify all limits)

Engineering note: Before selecting a replacement, always confirm pinout, package outline, maximum voltage and current ratings, gain range, power dissipation, and frequency behavior against the original BC857BLT1G datasheet. Even parts marketed as equivalents may differ in polarity, thermal performance, or safe operating area, potentially requiring schematic or PCB modifications.
