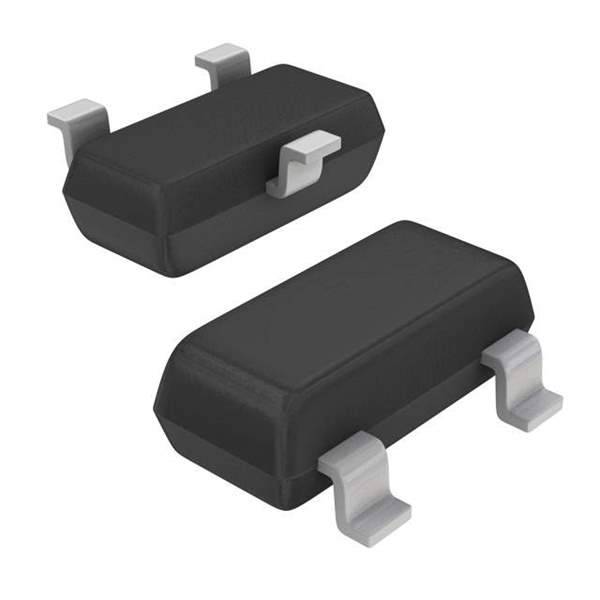

NSVMMUN2112LT1G

Parte No NSVMMUN2112LT1G
Produttore ON Semiconductor
Catalogo RF Transistors (BJT)
Descrizione TRANS PREBIAS PNP 0.246W SOT23 / Pre-Biased Bipolar Transistor (BJT) PNP - Pre-Biased 50 V 100 mA 246 mW Surface Mount SOT-23-3 (TO-236)
Scheda tecnica
Campione
Stato RoHS rohs
Modelli ECAD
Serve Aiuto?

Specifiche prodotto Segnala problema?

Categoria Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Single, Pre-Biased
Costruttore onsemi
Imballaggio Tape & Reel
Tipo di transistor PNP - Pre-Biased
Corrente - Collettore (Ic) (max) 100 mA
Tensione - rottura collettore-emettitore (max) 50 V
Resistore - Base (R1) 22 kOhms
Resistore - Base emettitore (R2) 22 kOhms
Guadagno in corrente c.c. (hFE) min a Ic, Vce 60 @ 5mA, 10V
Saturazione Vce (max) a Ib, Ic 250mV @ 300µA, 10mA
Corrente - Interdizione collettore (max) 500nA
Potenza - Max 246 mW
Montaggio SMD (SMT)
Contenitore/involucro TO-236-3, SC-59, SOT-23-3
Package del produttore SOT-23-3 (TO-236)
Codice articolo di base NSVMMUN2112
Livello MSL 1 (Unlimited)
Stato REACH REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0095
Altri nomi NSVMMUN2112LT1GOSTR,NSVMMUN2112LT1G-ND,NSVMMUN2112LT1GOSCT,NSVMMUN2112LT1GOSDKR
Confezione standard 3,000
Codice Articolo Win Source 1014176-NSVMMUN2112LT1G
Rischio di contraffazione sul mercato aperto 85 pct.
Modello 3D Ultra Librarian Ultra Librarian NSVMMUN2112LT1G Modello CAD

Descrizione

NSVMMUN2112LT1G from ON Semiconductor is an RF transistor (BJT) intended for designers who need a compact transistor solution for signal handling, switching, and RF-related circuit support functions in space-constrained electronics. Parts in this category are commonly considered for portable devices, communication modules, control boards, and general small-signal designs where consistent sourcing and compliance visibility matter alongside electrical performance. For engineering teams, this component can be relevant in both new development reviews and sustaining applications, especially when evaluating approved vendor lists and procurement continuity. The current lifecycle status is information not available, so design and sourcing teams should confirm manufacturer status before committing to long-term production. RoHS compliance information is also not available from the provided input and should be verified through the latest datasheet, manufacturer declarations, or authorized distribution channels. This makes NSVMMUN2112LT1G best approached with a verification-first sourcing strategy in regulated or lifecycle-sensitive programs.
