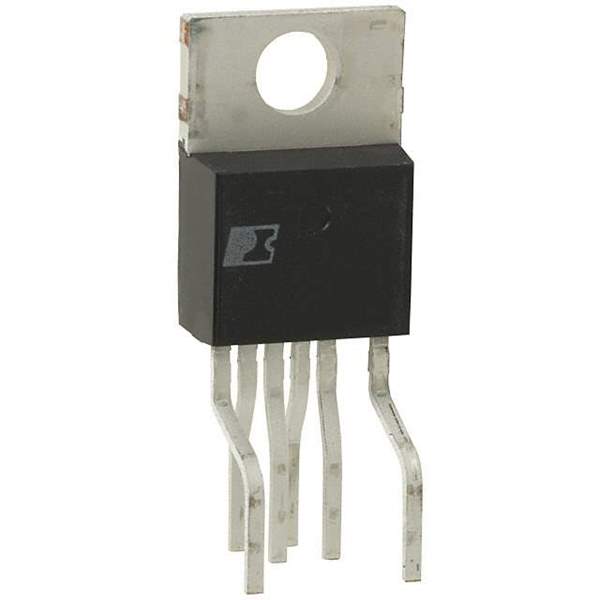

Parte No TOP246Y
Produttore Power Integrations
Catalogo PMIC - AC DC Converters, Offline Switchers
Descrizione Family Extended Power, Design Flexible,Integrated Off-line Switcher | IC OFFLINE SWIT UVLO HV TO220
Campione
Stato RoHS Richiede verifica
Modelli ECAD
Serve Aiuto?

Specifiche prodotto Segnala problema?

Categorie Integrated Circuits
Costruttore Power Integrations
Imballaggio Bulk
Stato Obsolete
Isolamento uscita Isolated
Interruttore(i) interno(i) Yes
Tensione - Rottura 700V
Topologia Flyback
Ciclo di lavoro 66.5%
Frequenza di commutazione 66kHz ~ 132kHz
Potenza (W) 125W
Protezione dai guasti Current Limiting, Over Temperature, Over Voltage
Funzioni di controllo Frequency Control
Intervallo di temperatura - Esercizio -40°C ~ 150°C
Package del costruttore TO-220-7 (Formed Leads), 6 Leads
Package del produttore TO-220-7C
Tipo di montaggio Through Hole
Quantità confezione del costruttore 2,000
Livello MSL 1 (Unlimited)
Codice Articolo Win Source 1271628-TOP246Y
Homepage del costruttore www.powerint.com
Popolarità Medium
Rischio di contraffazione sul mercato aperto 54 pct.
Stato della domanda e dell'offerta Balance
Modello 3D Ultra Librarian Ultra Librarian TOP246Y Modello CAD

Descrizione

The TOP246Y is a flyback topology power supply integrated circuit from Power Integrations.

  • Mounting Style: through hole
  • Output: isolated
  • Internal Switches: yes
  • Voltage Breakdown: 700V
  • Duty Cycle: 66.5%
  • Fault Protection: current limiting, over temperature, and over voltage protection
  • Frequency Control Features: yes
  • Switching Frequency: ranges from 66kHz to 132kHz
  • Power: up to 125W
  • Status: obsolete
  • Popularity: medium
  • Supplier Device Package: TO-220-7C
  • MSL Level: 1 (unlimited)
