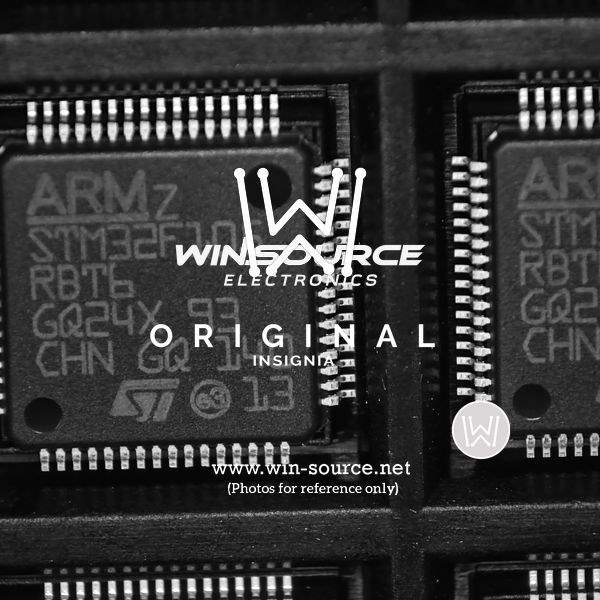

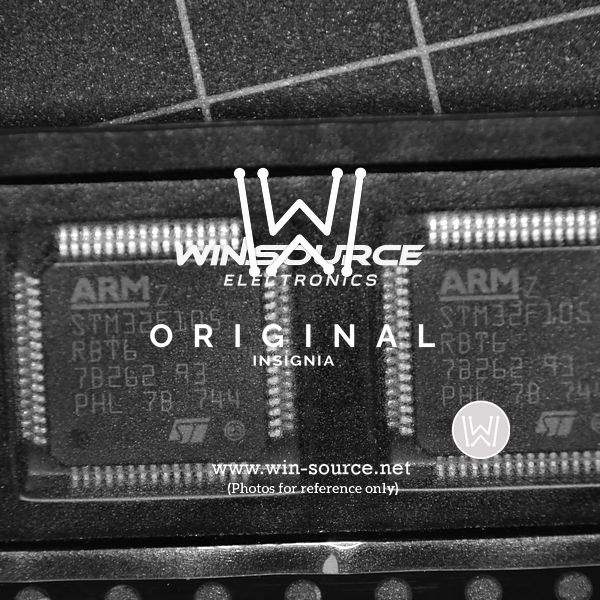

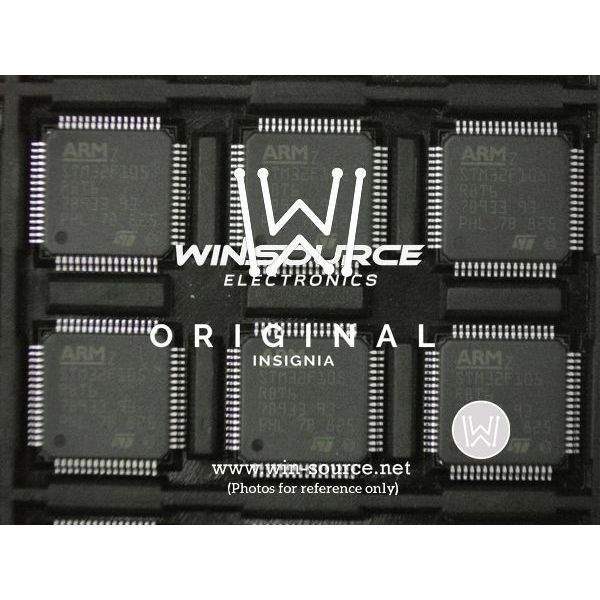

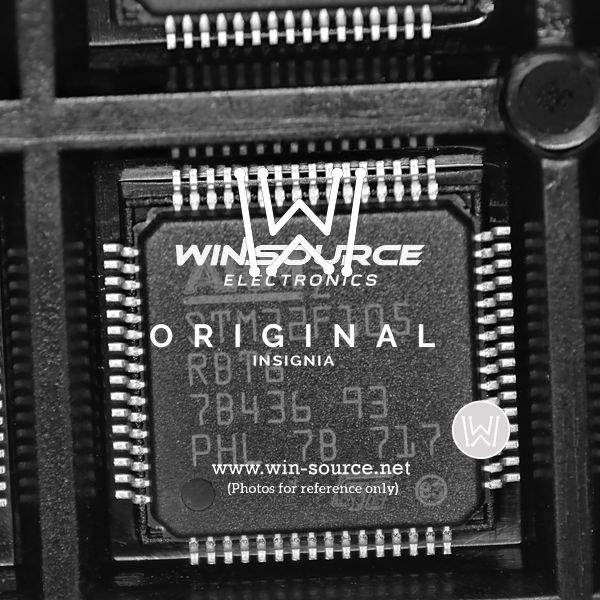

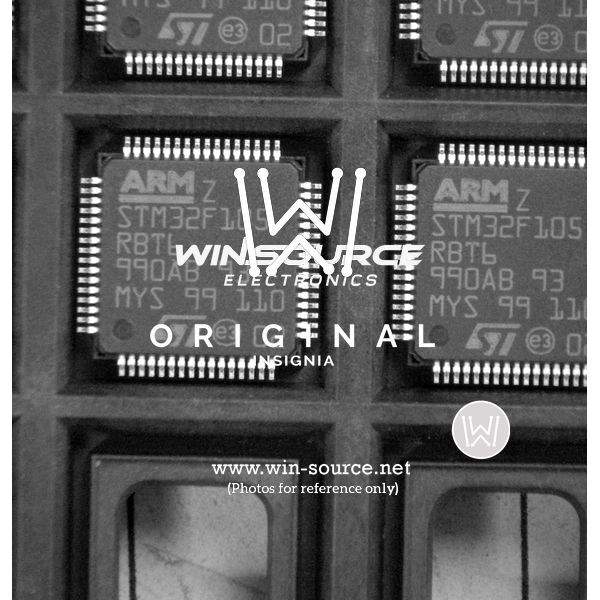

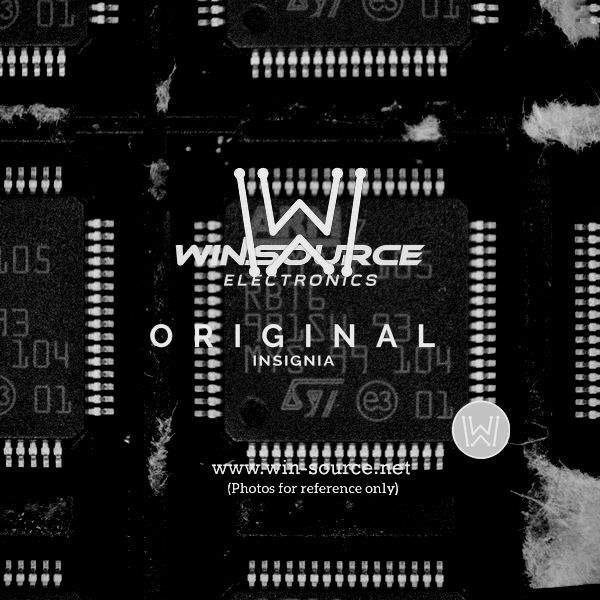

STM32F105RBT6 Microcontroller Overview

The STM32F105RBT6 is a high-performance microcontroller unit (MCU) from STMicroelectronics, renowned for its robust design and versatile features. This MCU is part of the STM32F1 series, which is based on the ARM® Cortex®-M3 32-bit RISC core, operating at a frequency of up to 72 MHz. The STM32F105RBT6 offers an optimal balance between performance, power consumption, and cost, making it suitable for a wide range of applications.

With a 128 KB of Flash memory and 20 KB of SRAM, this microcontroller provides ample space for complex applications and real-time operations. Its comprehensive set of peripherals includes USB OTG, CAN, and multiple serial interfaces, allowing for easy integration into various communication environments.

Key Features:

• Core: ARM® Cortex®-M3 32-bit RISC
• Operating Frequency: Up to 72 MHz
• Flash Memory: 128 KB
• SRAM: 20 KB
• Connectivity: USB OTG, CAN, I2C, SPI, USART
• 12-bit Analog-to-Digital Converters (ADCs)
• Timers: General-purpose and advanced-control
• Debug mode: Serial Wire Debug (SWD) & JTAG interfaces

The STM32F105RBT6 also boasts analog features such as 12-bit ADCs, which provide precise measurement for analog signals, making it ideal for sensor interfacing. The inclusion of versatile timers supports both simple and advanced motor control applications.

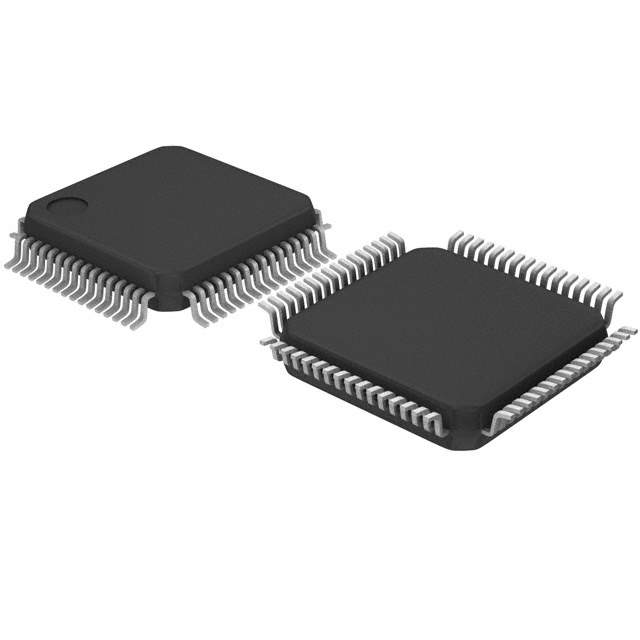

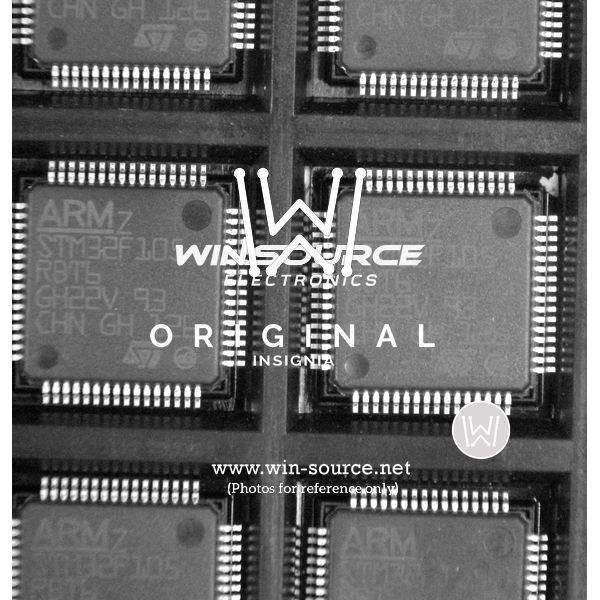

For developers, the MCU supports Serial Wire Debug (SWD) and JTAG interfaces, facilitating easy programming, debugging, and testing. The device's LQFP64 package ensures a compact footprint while offering enough GPIOs for most applications.

Whether you're designing industrial control systems, network controllers, or complex consumer devices, the STM32F105RBT6 provides a scalable, cost-effective, and energy-efficient solution. Its robust architecture and extensive feature set make it a go-to choice for engineers looking to create sophisticated and reliable products.
