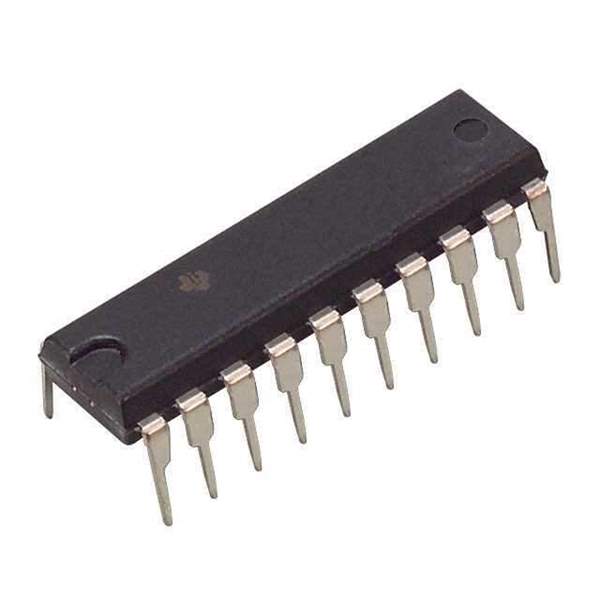

Product Overview: SN74LS540N

The SN74LS540N is a high-quality Octal Buffer/Line Driver designed and manufactured by Texas Instruments. This integrated circuit is part of the 74LS series, known for its low-power Schottky technology. It is specifically engineered to have the capability to drive lines or buffer memory address registers with high performance and reliability.

Key Features

• Logic Type: Octal Buffer/Line Driver with 3-state outputs
• Number of Pins: 20-pin PDIP (Plastic Dual-In-Line Package)
• Operating Voltage Range: 4.75V to 5.25V, typically powered by a 5V supply
• Output Current: -15 mA to 24 mA, providing sufficient drive capability
• Propagation Delay Time: Fast speed with a typical delay time of 12ns
• Operating Temperature: 0°C to 70°C, suitable for commercial temperature ranges

Applications

The SN74LS540N is versatile and can be used in a wide array of applications, including:

• Memory address drivers
• Bus-oriented systems
• Data transmission systems
• Input/Output port drivers
• Buffer memory address registers

Product Advantages

This device offers several advantages for system design, including its octal configuration, which allows for efficient data handling in 8-bit chunks. The 3-state outputs enable connection to a bus without interfering with other components. The robust design ensures that the SN74LS540N can drive capacitive loads without degradation of performance, making it a reliable choice for demanding applications.

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the SN74LS540N is no exception. It is designed to meet or exceed the stringent standards set by the industry, ensuring a long operational life and stable performance throughout its lifespan.
