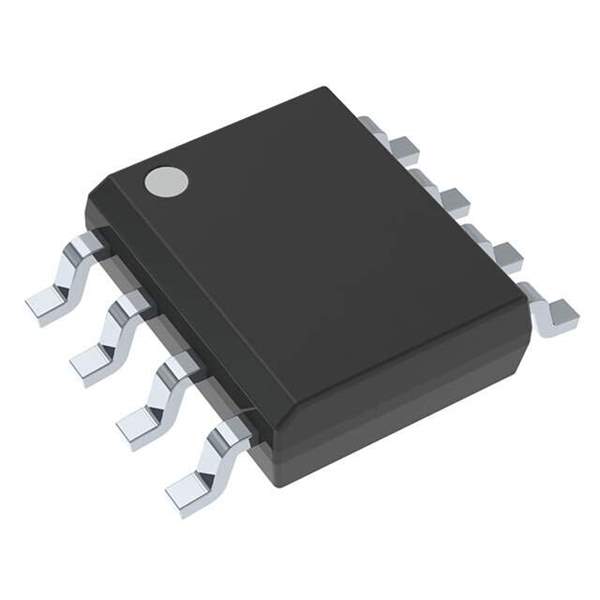

Overview of Texas Instruments TLC2262CDR

The TLC2262CDR from Texas Instruments is a precision operational amplifier that has been designed to meet a wide range of applications in the industrial, automotive, and consumer markets. This operational amplifier is part of the LinCMOS™ family, which means it is fabricated with advanced CMOS technology to provide an optimal balance of power efficiency, speed, and accuracy.

Key Features

• Low Power Consumption: The TLC2262CDR is characterized by its low power requirements, making it suitable for battery-powered and portable applications where power efficiency is critical.
• High Output Drive: Despite its low power consumption, this device is capable of delivering a high output drive, which is essential for driving capacitive loads.
• Wide Supply Range: It operates from a single supply range of 3V to 16V or a dual supply range of ±1.5V to ±8V, providing flexibility in various circuit configurations.
• Low Input Bias Current: The input bias current is extremely low, which is ideal for applications requiring high-impedance inputs.
• Low Noise: The TLC2262CDR offers a low-noise performance, making it suitable for sensitive signal processing applications.
• High Input Impedance: It also features a high input impedance, which minimizes the loading effect on the input source.
• Rail-to-Rail Output: The amplifier can swing its output voltage very close to the supply rails, maximizing the dynamic range in single-supply operation.

Applications

The versatility of the TLC2262CDR allows it to be used in a variety of applications, including:

• Active filters
• Data acquisition systems
• Portable and battery-operated equipment
• Medical instrumentation
• Analog signal processing
• Sensor interfaces

Package and Quality

The TLC2262CDR comes in an 8-pin SOIC package, which is a small outline package that is suitable for space-constrained applications. Texas Instruments ensures high quality and reliability, and the TLC2262CDR is no exception, providing consistent performance for a wide range of operating conditions.

With its combination of low power, high accuracy, and wide supply voltage range, the TLC2262CDR is a solid choice for designers looking for an operational amplifier that can handle the demands of modern electronic circuits.
