Product Overview: Texas Instruments TLC555ID

The TLC555ID from Texas Instruments is a highly versatile and efficient CMOS Timer Integrated Circuit (IC) that offers significant improvements over standard 555 timer devices. Designed to operate in both monostable and astable modes, this IC is capable of producing accurate time delays or oscillation, making it an ideal choice for a wide range of applications, including timing, pulse generation, and sequential timing.

The TLC555ID operates with a supply voltage range from 2V to 15V, ensuring compatibility with various electronic systems and providing a solution for low-voltage applications. This flexibility in voltage supply is complemented by its low power consumption, which is significantly less than that of standard bipolar 555 timers. The reduced power waste not only enhances the energy efficiency of the end product but also extends the life of battery-operated devices.

One of the standout features of the TLC555ID is its high output current capability, which can drive loads up to 100mA. Additionally, its output is fully compatible with CMOS, TTL, and MOS logic, allowing for seamless integration with a broad range of digital systems. The device also includes a temperature stability of 0.005% per degree Celsius, which ensures consistent performance over a wide temperature range.

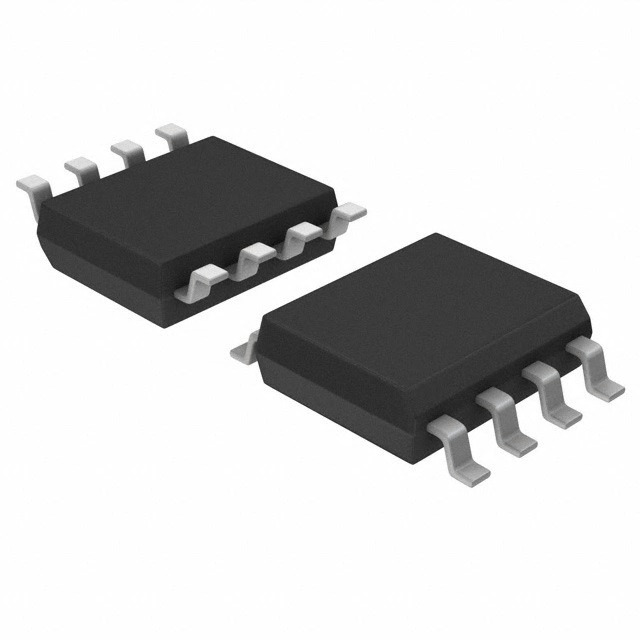

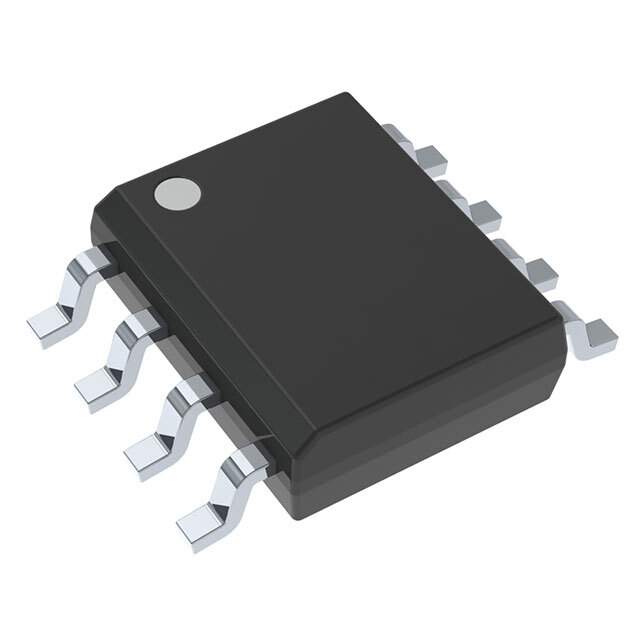

The timer IC is housed in an 8-pin SOIC (Small Outline Integrated Circuit) package, which is designed for space-saving on PCBs (Printed Circuit Boards). The TLC555ID also features a trigger and reset inputs that are processed as active low signals, providing designers with flexibility and control in their circuit configurations.

Texas Instruments' commitment to quality is evident in the TLC555ID, with its robust design and built-in safety features, such as latch-up immunity and ESD (Electrostatic Discharge) protection. These characteristics make the TLC555ID a reliable choice for industrial, consumer, and telecommunication applications, where performance and durability are paramount.

In summary, the TLC555ID is a highly efficient, versatile, and reliable timer IC that offers designers a compact, low-power solution for a multitude of timing and pulse generation tasks. Its compatibility with various logic levels and high output drive capability make it a go-to component for engineers and hobbyists alike.
