Product Overview: Texas Instruments TS3V340RGYR

The Texas Instruments TS3V340RGYR is a high-performance, 4-channel 2:1 multiplexer and demultiplexer designed for use in signal routing applications. This versatile component is part of the wide array of switch ICs offered by Texas Instruments, known for their reliability and cutting-edge technology.

Key Features

• Wide Bandwidth: The TS3V340RGYR boasts a wide bandwidth that ensures minimal signal degradation, making it suitable for high-speed data streams and video applications.
• Low Power Consumption: With an emphasis on power efficiency, this device operates with a very low quiescent current, which is ideal for battery-powered devices.
• High ESD Protection: The device is equipped with robust electrostatic discharge (ESD) protection, safeguarding it against the common issue of static electricity damage.
• Multiple Signal Compatibility: It is capable of routing a variety of signals including analog, digital, and video, providing flexibility in application use.
• Bidirectional Operation: The TS3V340RGYR can be used in both multiplexing and demultiplexing modes, adding to its versatility.

Applications

The TS3V340RGYR is designed to meet the requirements of a broad range of applications. It is particularly well-suited for:

• Video signal routing in TVs, monitors, and projectors
• Data multiplexing in telecommunications equipment
• Signal gating in test and measurement systems
• Function switching in consumer electronics

Package and Quality

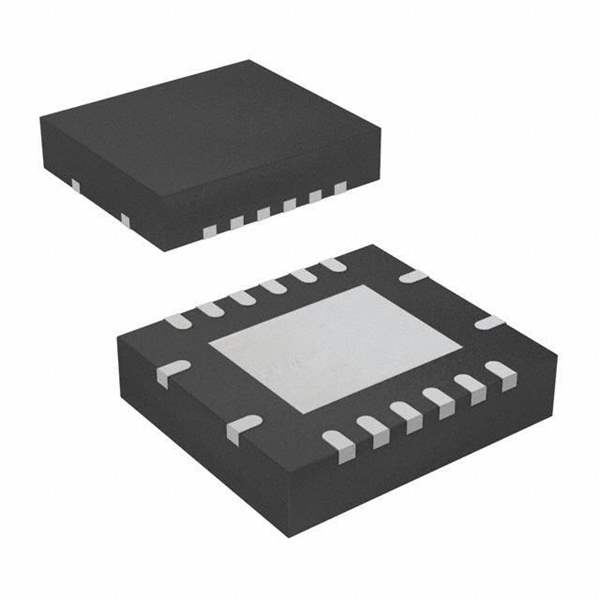

The device is available in a compact QFN package, which is ideal for space-constrained applications. It is also RoHS compliant and follows Texas Instruments' commitment to environmentally responsible manufacturing processes. Furthermore, the TS3V340RGYR is characterized for operation from -40°C to 85°C, ensuring reliable performance across a wide temperature range.

Conclusion

In conclusion, the Texas Instruments TS3V340RGYR is a versatile, high-performance switch IC that offers a combination of wide bandwidth, low power consumption, and high ESD protection. Its ability to handle multiple signal types and its bidirectional functionality make it a top choice for designers looking for a reliable solution for their signal routing needs.
