Parte No 744760222A
Produttore Wurth Electronics Inc
Catalogo Fixed Inductors
Descrizione WE-KI SMT WIRE WOUND CERAMIC IND
Scheda tecnica
Campione
Stato RoHS rohs
Modelli ECAD
Serve Aiuto?

Specifiche prodotto Segnala problema?

Categoria Inductors, Coils, Chokes - Fixed Inductors
Costruttore Wurth Electronics Inc
Serie WE-KI
Imballaggio Tape & Reel
Stato del prodotto Active
Tipo Wirewound
Materiale - Nucleo Ceramic
Induttanza 220 nH
Tolleranza ±5%
Corrente nominale (A) 400 mA
Schermatura Unshielded
Resistenza c.c. (DCR) 1Ohm Max
Q a frequenza 50 @ 250MHz
Frequenza - Autorisonante 860MHz
Valutazioni AEC-Q200
Intervallo di temperatura - Esercizio -40°C ~ 125°C
Frequenza induttanza - Test 100 MHz
Tipo di montaggio Surface Mount
Contenitore/involucro 0805 (2012 Metric)
Package del produttore 0805
Dimensioni 0.079" L x 0.049" W (2.00mm x 1.25mm)
Altezza - A piantare (max) 0.055" (1.40mm)
Confezione standard 2,000 pcs
Livello MSL 1 (Unlimited)
Stato REACH REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Codice Articolo Win Source 1149422-744760222A
Rischio di contraffazione sul mercato aperto 38pct.
Modello 3D Ultra Librarian Ultra Librarian 744760222A Modello CAD

Descrizione

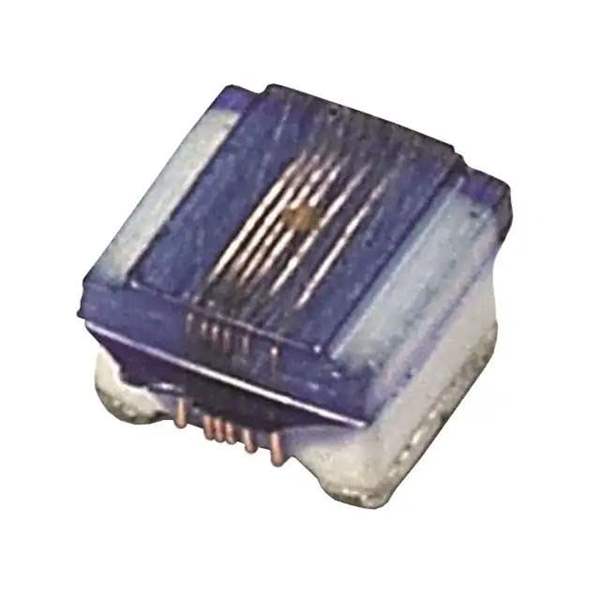

The 1022208 is a wirewound fixed inductor in the WE-KI series. Wurth Electronics Inc manufactures it.

  • Series: WE-KI
  • Win Source Part Number: 1149422-744760222A
  • Package: Tape & Reel
  • Shielding: Unshielded
  • Size/Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Inductance: 220 nH
  • Tolerance: ±5%
  • Mounting Type: Surface Mount
  • Package/Case: 0805 (2012 Metric)
  • DC Resistance (DCR): 1 Ohm max
  • Operating Temperature: -40°C to 125°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited Floor Life)
  • Product Status: Active
  • AEC-Q200: Yes (Automotive Electronics)
